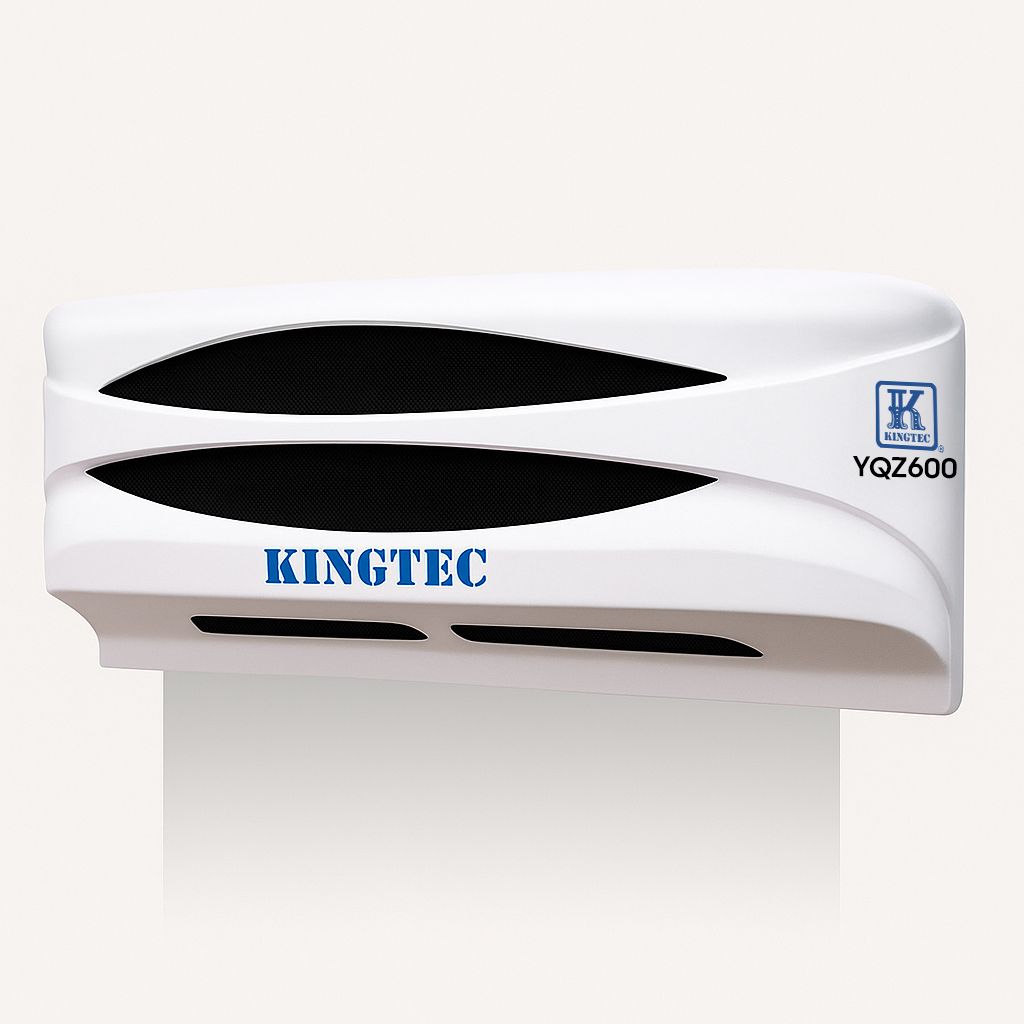

KINGTEC YQZ600
The KINGTEC YQZ600 is a powerful refrigeration unit designed for fresh and frozen applications in medium-sized refrigerated trucks and vans (15–30m³). It features an integrated condenser and evaporator, compact yet efficient design, and supports both road and electric standby modes for versatile cooling performance.
Key Features:
-
Integrated condenser and evaporator design for space efficiency
-
Compatible with both road and electric standby compressors
-
High airflow evaporator (3000 m³/h) for rapid cooling
-
Automatic hot gas defrost system
-
Eco-friendly refrigerant (HFC R404A, Chlorine-Free)
Click to Download Product Brochure
Description
System Components
Product Specifications
| Specification | Details |
|---|---|
| Model | YQZ600 |
| Refrigerant | R404A (2.5 kg) |
| Cooling Capacity (ATP Standard) | 4500W (0°C) / 3300W (-20°C) |
| Cooling Capacity (National Std.) | 4000W (2°C) / 3000W (-18°C) |
| Electric Stand-by (60Hz) | 4000W (0°C) / 2350W (-20°C) |
| Airflow Volume | 3000m³/h (1770 cu ft/min) |
| Defrost | Automatic hot gas defrost |
| Compressor | QP21 (215cc), max RPM: 3000 |
| Weight (Main Unit) | 135 kg |
| Weight (Standby Unit) | 80 kg |
| Electrical Options | Electric standby 60Hz (Optional) |
| Dimensions (Main Unit) | 2010mm × 532mm × 700mm |
| Dimensions (Standby Unit) | 610mm × 355mm × 420mm |
| Controller Dimensions | 77mm × 77mm × 35mmYQZ600 英文 2023.8.15 (1) |
