Kingtec S293EC
The Kingtec T235EC is a reliable, engine-driven refrigeration unit designed for fresh and frozen applications in 6–19m³ mini refrigerator trucks and vans. Engineered for durability and efficiency, it ensures optimal performance under varying ambient conditions.
Key Features:
- Designed for 6–19m³ mini refrigerated trucks & vans
- Engine-driven road compressor with magnetic clutch
- Chlorine-free refrigerant (HFC R134a)
- For both fresh and frozen goods

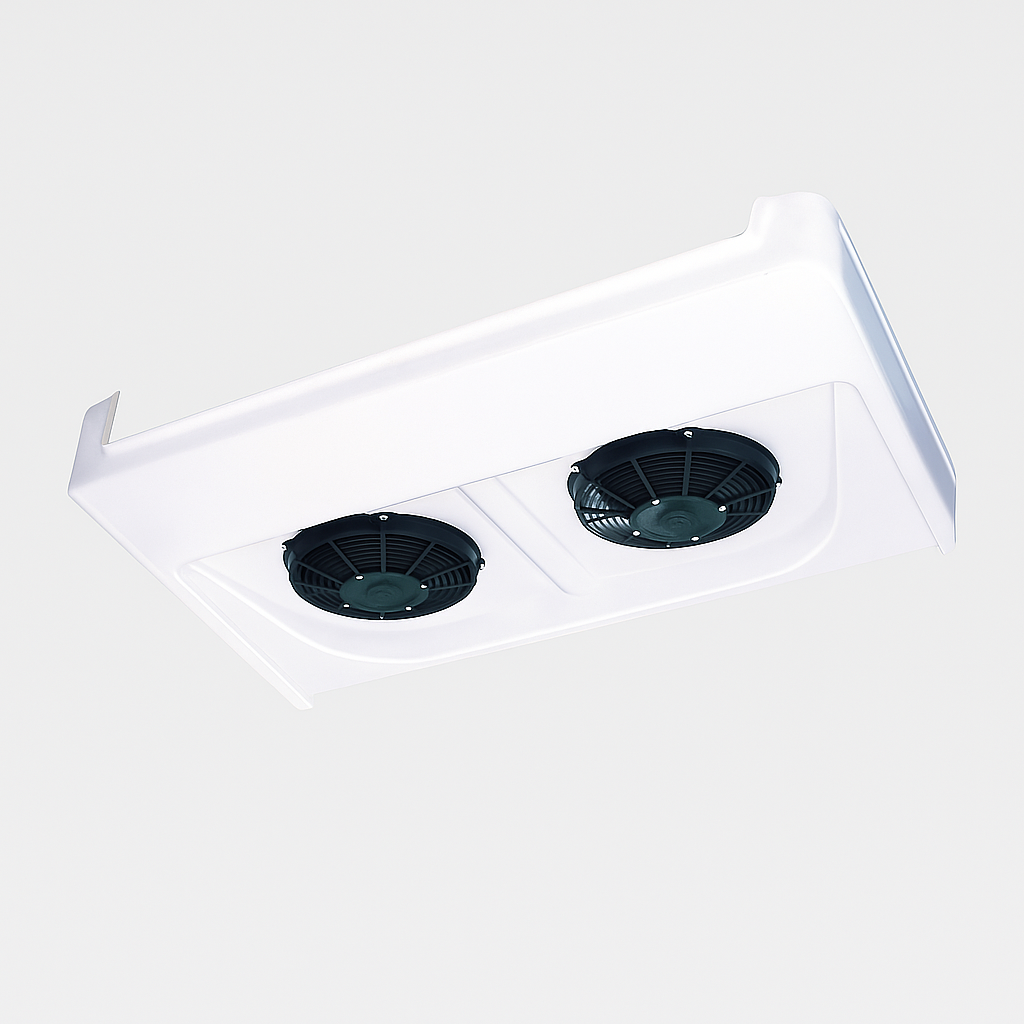

- Includes condenser, evaporator, control box, and wiring harness
Click to Download Product Brochure
Description
System Components
Product Specifications
| Category | Details |
|---|---|
| Refrigerant Type | HFC R134a (1.65 kg) |
| Cooling Capacity (30°C Ambient) | 2990 W / 10200 BTU/hr @ 0°C return 1300 W / 4440 BTU/hr @ -20°C return |
| Cooling Capacity (38°C Ambient) | 2850 W / 9560 BTU/hr @ 2°C return 1200 W / 4100 BTU/hr @ -18°C return |
| Airflow Volume | 1380 m³/h (810 cu ft/min) |
| Compressor Type | Swash plate engine-driven |
| No. of Cylinders | 6 |
| Displacement | 162 cc |
| Max Recommended Speed | 3000 RPM |
| Electrical Options | DC12V: 28A / DC24V: 15.5A |
| Condenser Weight | 25 kg |
| Evaporator Weight | 22 kg |
| Control System | In-cab LAE control box |
