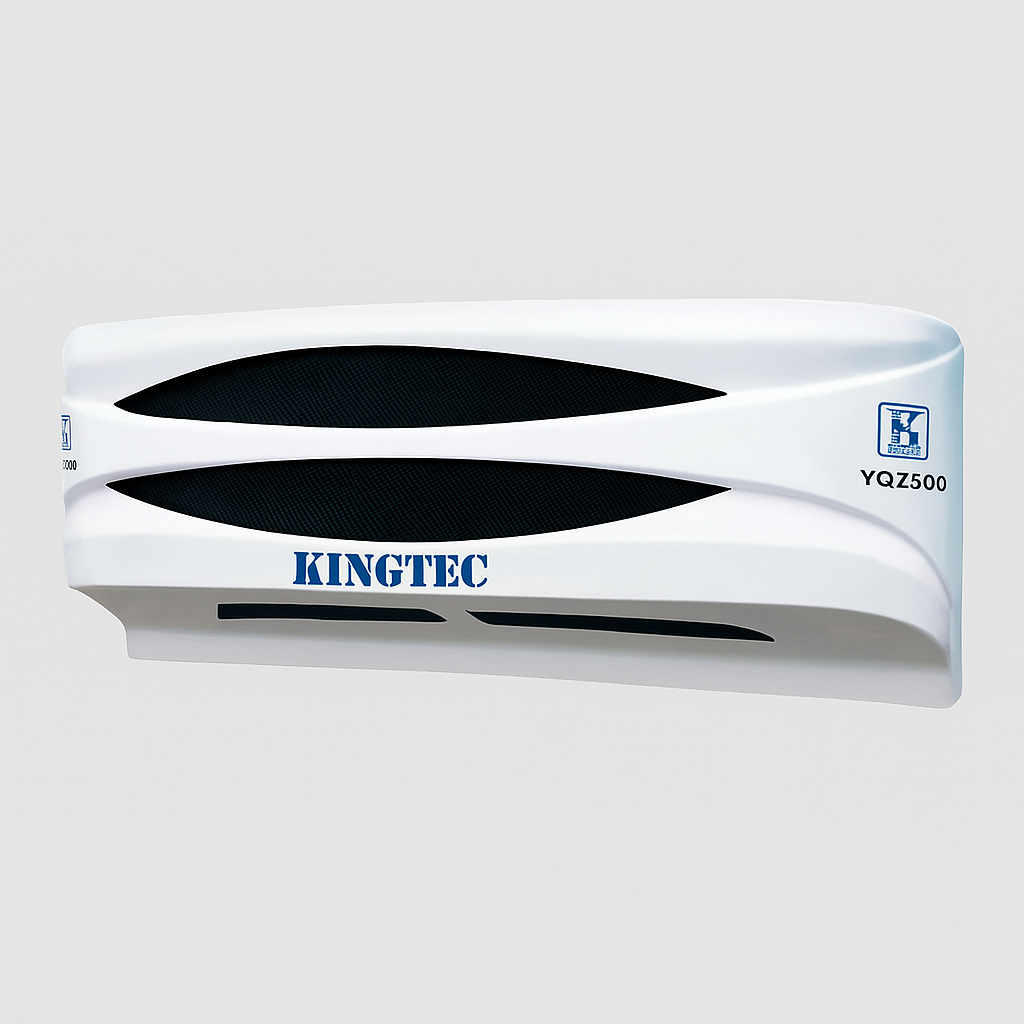

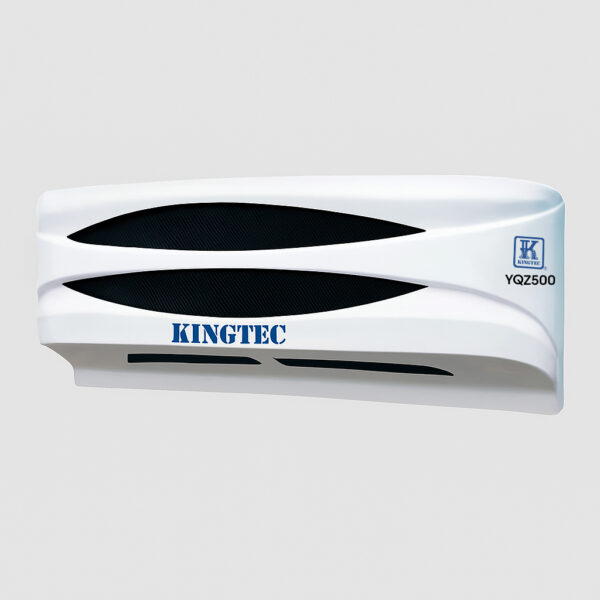

Kingtec YQZ500
The Kingtec YQZ500 is designed for fresh and frozen applications in 15-40m³ medium refrigerator trucks and vans. Its integrative structure ensures easy installation, while the super-thin evaporator saves space for more goods. Powered by the vehicle engine, it delivers efficient cooling on the road.
Key Features:
- Integrative condenser and evaporator assembly for easy installation
- Super-thin evaporator design to maximize cargo space
- Environmentally friendly with chlorine-zero refrigerants (R404A and R134A)
- Powerful road compressor (QP16, 163cc) with a max recommended RPM of 3000rpm
- Automatic hot gas defrost for consistent performance
Click to Download Product Brochure
Description
System Components
Product Specifications:
| Category | Details |
|---|---|
| Application | 15-40m³ medium refrigerator trucks and vans |
| Refrigeration Capacity | YQZ500 (R404A): 4920 Watts / 16728 BTU/hr at 0°C (32°F); 2338 Watts / 9649 BTU/hr at -20°C (-4°F) YQZ500 (R134A): 4230 Watts / 16082 BTU/hr at 2°C (35°F); 2762 Watts / 9331 BTU/hr at -18°C (0°F) |
| Air Return on the Road | YQZ500 (R404A): 3640 Watts / 12400 BTU/hr at 0°C (32°F); 1950 Watts / 6600 BTU/hr at -20°C (-4°F) YQZ500 (R134A): 3700 Watts / 12600 BTU/hr at 2°C (35°F); 1680 Watts / 5700 BTU/hr at -18°C (0°F) |
| Refrigerant | YQZ500 (R404A): HFC R404A, 1.5kg YQZ500 (R134A): HFC R134A, 1.6kg |
| Road Compressor | QP16 (163cc); Max recommend RPM: 3000rpm |
| Airflow Volume | Evaporator: 1650m³/h (970 cfm/min) |
| Defrost | Automatic hot gas defrost |
| Weight | Integrated condenser and evaporator: 98kg |
| Dimensions (mm/in) | Length: 1600mm (63.0″) Width: 814mm (32.0″) Height: 145mm (5.7″) Evaporator Height: 470mm (18.5″) Condenser Height: 480mm (18.9″) |
| Controller | AE Controller |
