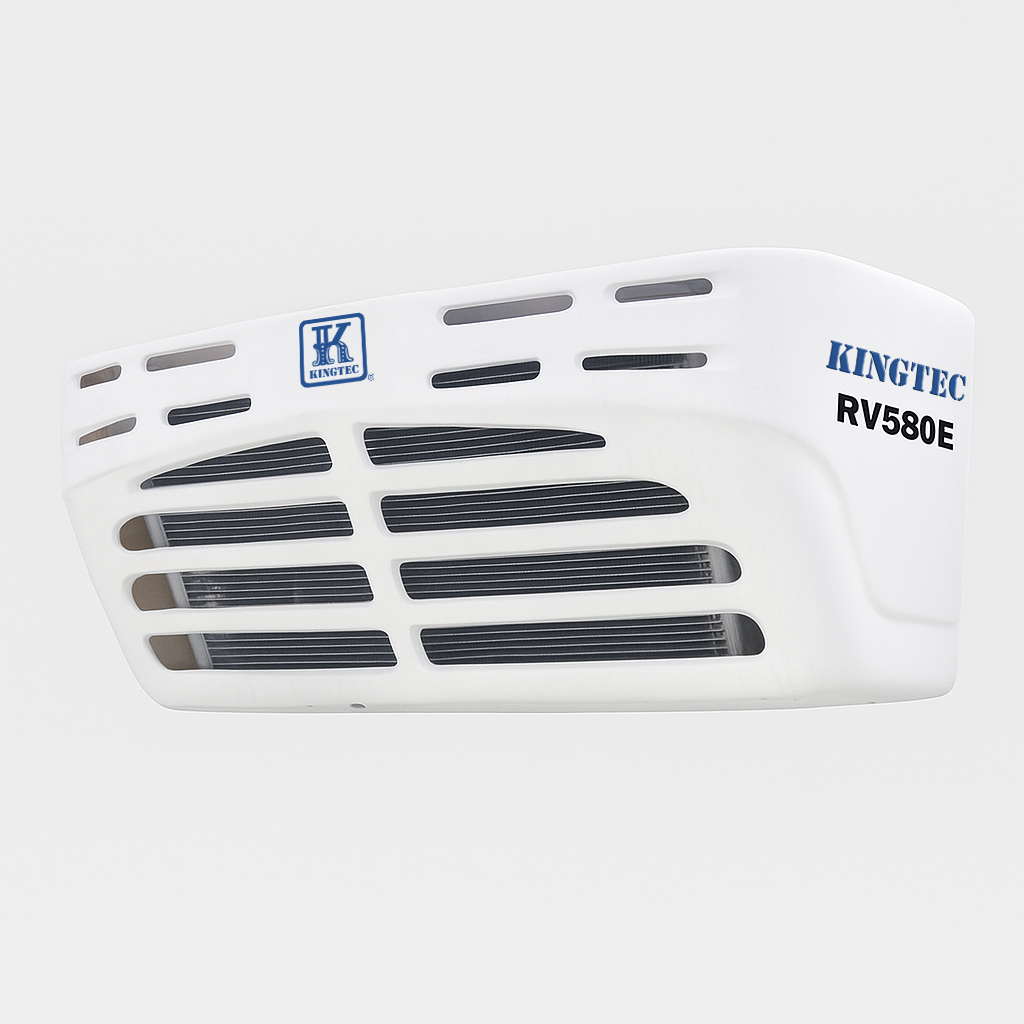

Kingtec RV580E

Kingtec RV580E

The Kingtec RV580E series is a compact, high-performance refrigeration unit designed for fresh and frozen applications in 6–19m³ mini-size refrigerated trucks. With a fully enclosed electric compressor and optional electric standby system, it’s efficient, reliable, and user-friendly.

Key Features:

  • Fully enclosed swash plate road compressor with electric standby option

  • Efficient hot gas defrost system for optimal performance

  • Intelligent modular design ensures easy installation and maintenance

  • High airflow evaporator (1600m³/h) ensures uniform cooling

  • Lightweight and compact – ideal for small-sized refrigerated trucks

Click to Download Product Brochure

Description

System Components

Product Specification:

Category Specification
Model RV580E (R134a)
Cooling Capacity @ 30°C Ambient 15000 BTU/hr (4420W at 0°C), 14100 BTU/hr (4130W at 2°C)
Cooling Capacity @ 38°C Ambient 14150 BTU/hr (4150W at 0°C), 13050 BTU/hr (3820W at 2°C)
Electric Standby – 50Hz 11600 BTU/hr (3400W at 0°C), 10750 BTU/hr (3160W at 2°C)
Refrigerant R134a – 1.6kg
Compressor Type Swash plate, 6 cylinders, TK16 (GP16) – 162cc
Max Compressor Speed 3000 RPM
Airflow Volume (Evaporator) 1600m³/h (940 cu ft/min)
Defrost System Hot gas defrost
Electrical Options DC 24V, 35A current consumption
Weights Condenser: 50kg (110lbs); Evaporator: 25kg (55lbs); Stand-by: 18kg (40lbs)
Control Panel LAE Control Panel
Stand-by Compressor High Efficiency Electrical Compressor
