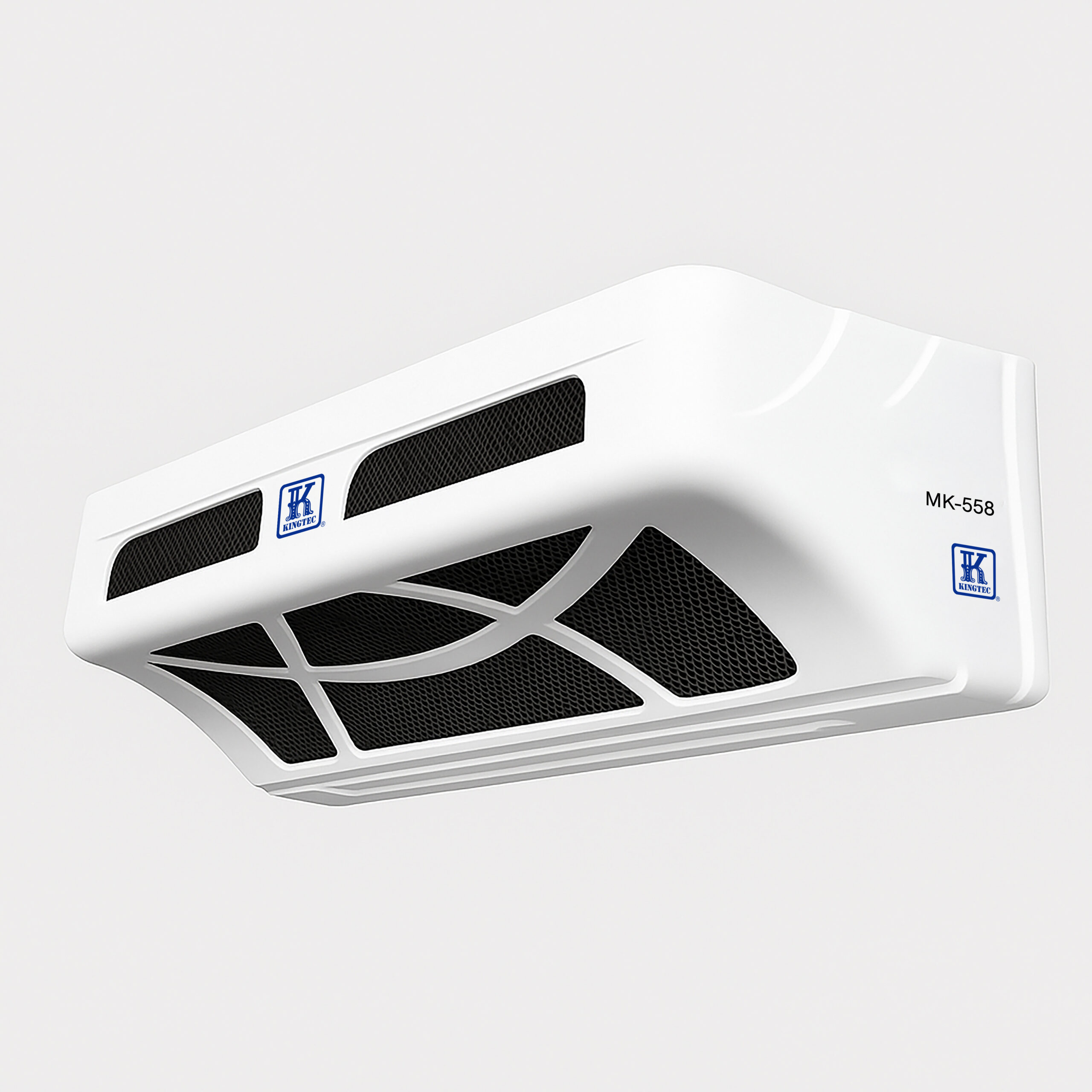

Kingtec MK-558

Kingtec MK-558

The Kingtec MK-558 series is a powerful, dual-compressor refrigeration unit designed for mini refrigeration trucks ranging from 6 to 60m³. Ideal for both fresh and frozen cargo, the system uses an engine-driven compressor with an electric standby option, ensuring reliable performance under all conditions.

Key Features:

  • Dual compressor system: engine-driven & electric standby

  • Powerful airflow: 2400 m³/h through EVK500 evaporator

  • Eco-friendly refrigerant: HFC R404A (2.1 kg)

  • Automatic hot gas defrost system

  • Optional heating via hot gas or engine water

Click to Download Product Brochure

Description

System Components

Product Specifications:

Category Specification
Cooling Capacity (ATP Standard) 5480 W (0°C), 3350 W (-20°C)
Cooling Capacity (US Standard) 5080 W (2°C), 2920 W (-18°C)
Refrigerant HFC R404A, 2.1 kg
Road Compressor Swash plate (QP21, 215cc)
Max Compressor Speed 3000 RPM
Evaporator EVK500 with airflow of 2400 m³/h (1410 cu ft/min)
Defrost System Automatic Hot Gas Defrost
Voltage Options DC12V or DC24V
Current Consumption On-road use (via road compressor)
Weights Condenser: 70 kg, Evaporator: 35 kg
Dimensions (Condenser) 1460 x 510 x 422 mm (58″ x 20″ x 17″)
Dimensions (Evaporator) 1320 x 620 x 233 mm (52″ x 24.4″ x 9.2″)
Control Panel Size 77 x 77 x 35 mm (3.03″ x 3.03″ x 1.37″)
