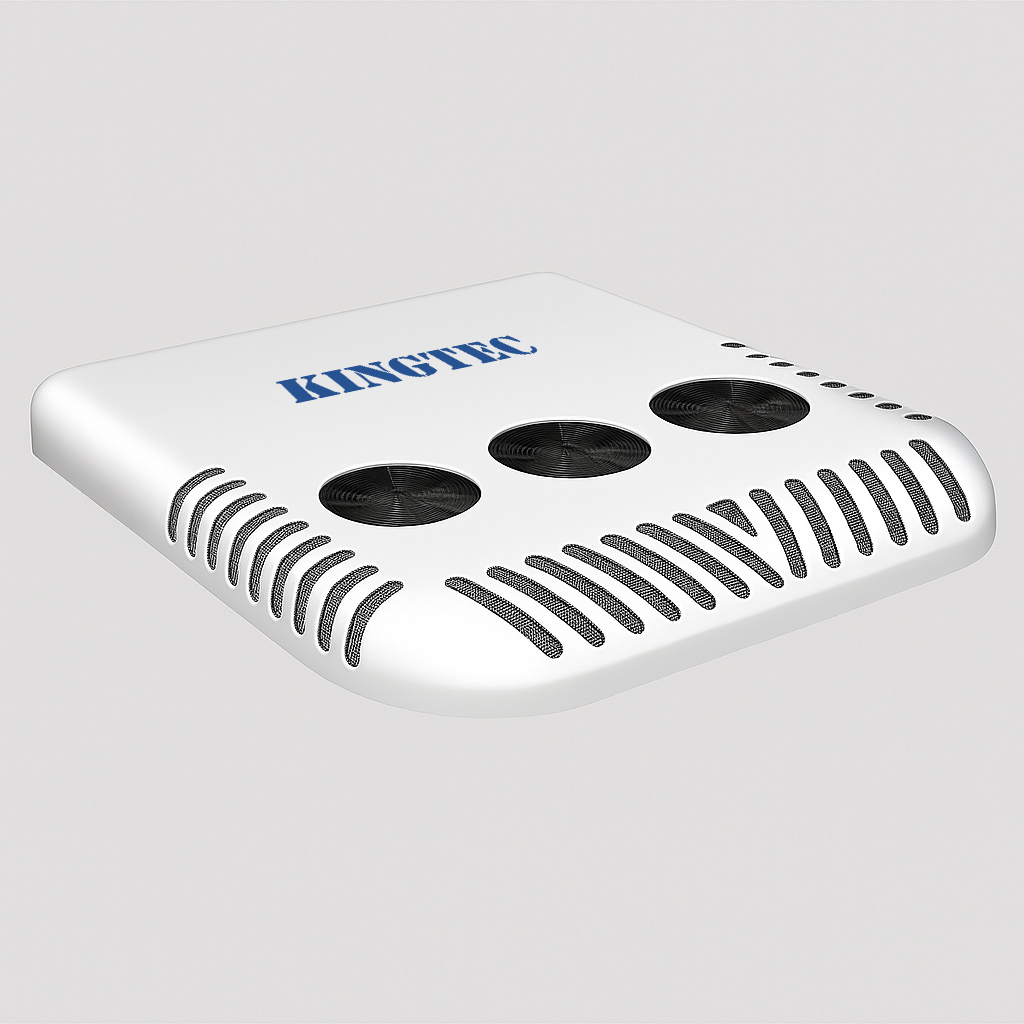

KSY05 Air Conditioning Unit
The KSY05 is a high-performance automotive/industrial air conditioning unit designed with efficient cooling capacity, reliable components, and advanced control systems. It ensures consistent airflow, temperature control, and durability for demanding environments.
Key Features:
-
High Cooling Capacity of 78,400 BTU for effective performance.
-
Efficient Compressor (SE10B20) with 207 CC displacement.
-
Advanced Control System with temperature and defrost control.
-
Powerful Airflow – 1146.6 CFM (Evaporator) & 2134.44 CFM (Condenser).
-
Durable & Compact Design with dimensions 58.46 × 51.2 × 6.3 inches and weight of 138.9 lbs.
Click to Download Product Brochure
Description
Product Specifications:
| Category | Specification |
|---|---|
| Model | KSY05 |
| Cooling Capacity | 78,400 BTU |
| Refrigerant | R134a |
| Refrigerant Charge | 5.512 lbs |
| Compressor Model | SE10B20 |
| Displacement | 207 CC |
| Lubrication Oil | PAG |
| Clutch Voltage | DC 12V |
| Compressor Weight | 17.196 lbs |
| Evaporator Type | DO12 (Copper tube) |
| Evaporator Air Flow | 1146.6 CFM |
| Evaporator Fan | ZFS112, 40/DC12V |
| Evaporator Current | Parallel flow |
| Condenser Type | Parallel Flow |
| Condenser Air Flow | 2134.44 CFM |
| Condenser Blower | LFC118P, 27.3/DC12V |
| Condenser Current | TDEN 3.1 |
| Expansion Valve | SGN 12S |
| Temperature Control | 33.8 – 37.4 °F |
| Defrost Temperature | On 239, Off 384 |
| Air Flow Speeds | 3 (On 20.3, Off 5.8) |
| Safety Device | High Pressure: 67.3 PSI / Low Pressure: 67.3 PSI |
| Total Current | – |
| Dimensions | 58.46 × 51.2 × 6.3 in |
| Weight | 138.9 lbs |
