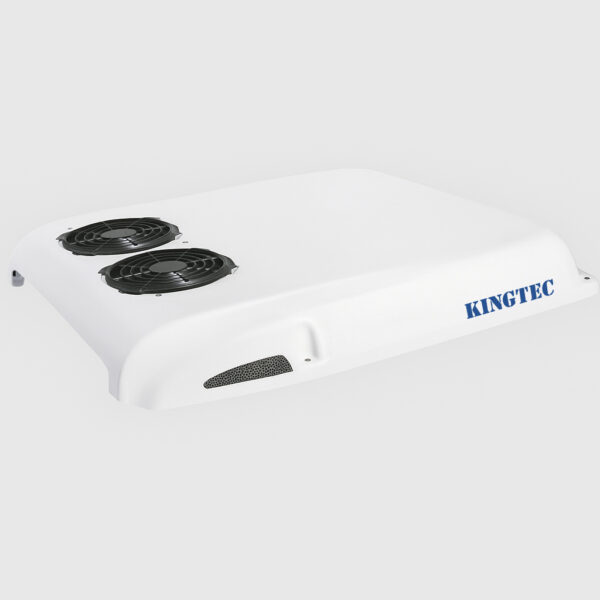

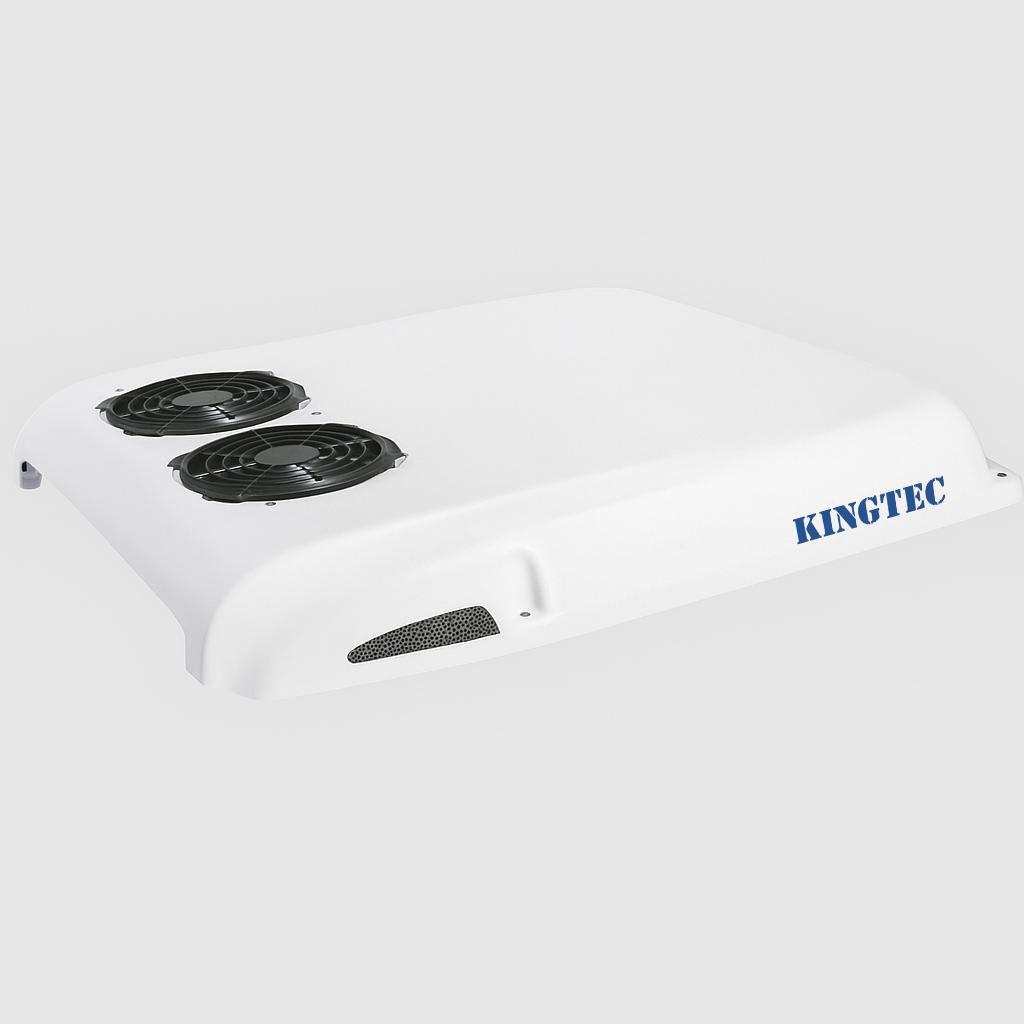

KST04 Bus Air Conditioning System
The KST04 is a high-performance vehicle air conditioning unit designed for minibuses, vans, and commercial vehicles. With a cooling capacity of 11 kW, efficient airflow, and durable components, it ensures reliable comfort for passengers and drivers even in demanding conditions.
Key Features:
-
Powerful Cooling: 11 kW / 38,000 BTU maximum cooling capacity.
-
Efficient Airflow: 2000 m³/h (evaporator) and 4400 m³/h (condenser).
-
Durable Compressor: Valeo TM-16 with 163 cc displacement.
-
Advanced Heat Exchange: Micro-channel condenser with hydrophilic aluminum foil.
-
Versatile Application: Suitable for minibuses, vans, VW, and IVECO commercial vehicles.
Click to Download Product Brochure
Description
Product Specifications:
| Specification | Details |
|---|---|
| Model | KST04 |
| Maximum Cooling Capacity | 11 kW / 38,000 BTU |
| Heating Capacity | Optional |
| Refrigerant | R134a / 2.3kg |
| Compressor Model | Valeo TM-16 |
| Compressor Displacement | 163 cc |
| Compressor Weight | 6.9 kg |
| Oil Type | ZXL 100PG PAG |
| Evaporator Type | Hydrophilic aluminum foil with internal ridge copper tube |
| Evaporator Air Flow | 2000 m³/h |
| Evaporator Fan Motor | 3-Speed centrifugal type |
| No. of Fans (Evaporator) | 2 PCS |
| Condenser Type | Micro-channel heat exchange |
| Condenser Air Flow | 4400 m³/h |
| Condenser Fan Motor | Axial Type |
| No. of Fans (Condenser) | 2 PCS |
| Dimensions (LxWxH) | 1465 × 1288 × 180 mm |
| Total Current | 76A / 12V |
| Weight | 55 kg |
| Application | Minibus, Van, VW, IVECO commercial vehicle |
