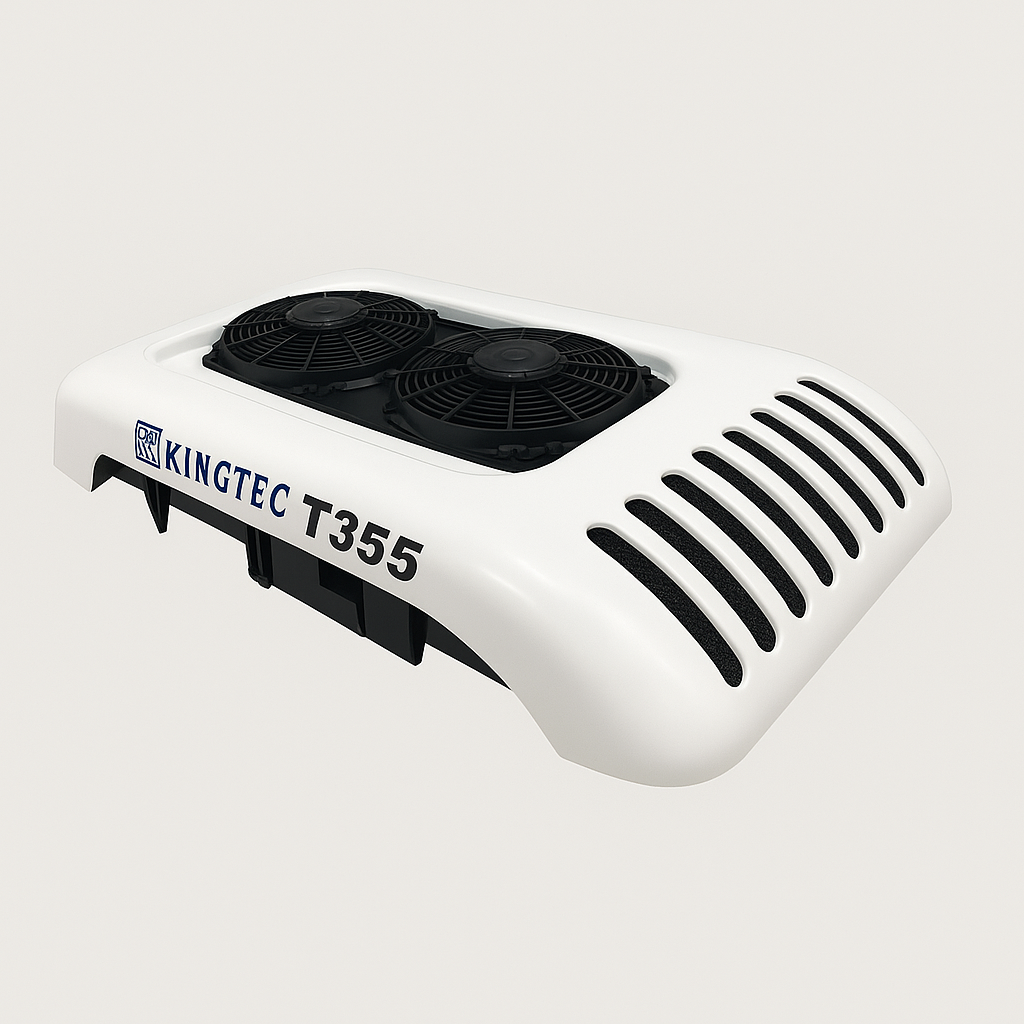

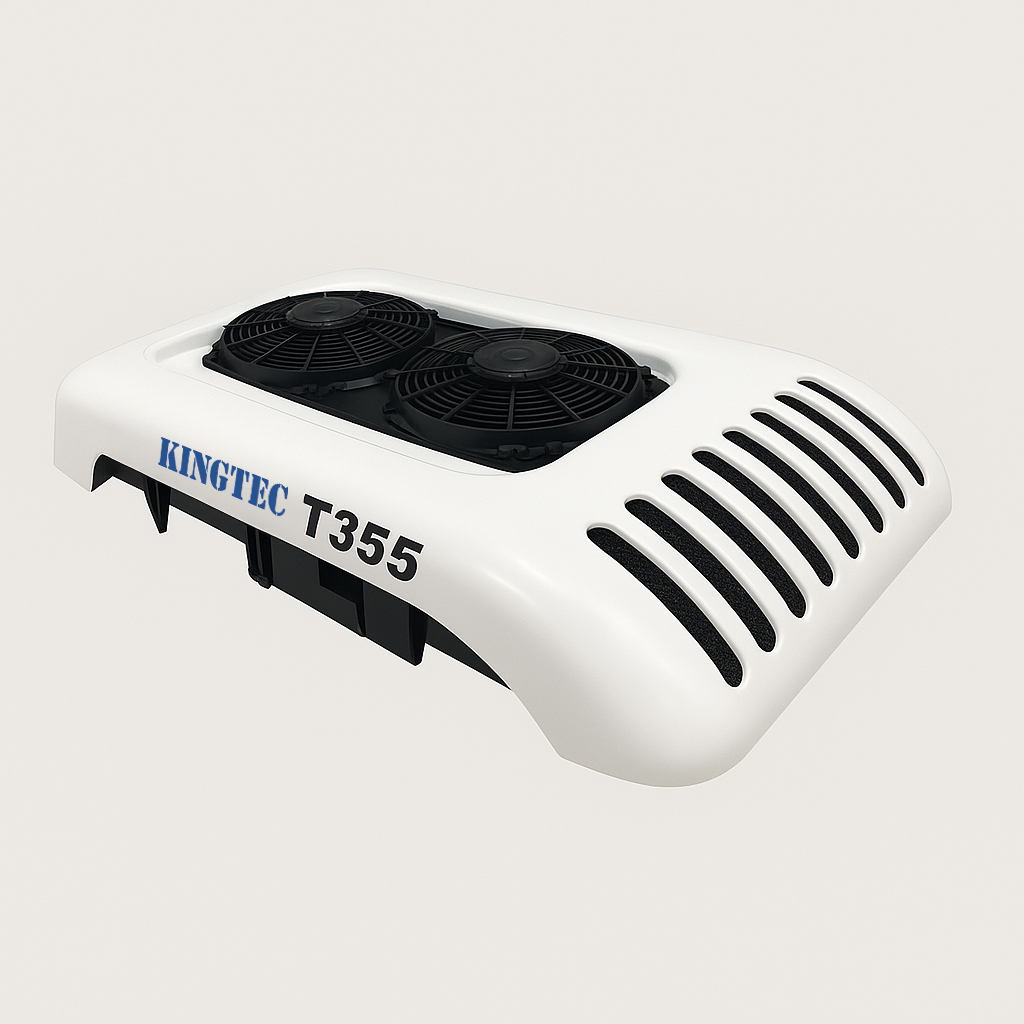

Kingtec T355
The Kingtec T355 series is designed for fresh and frozen applications in 4-25m³ mini refrigerator trucks and vans. Powered by the vehicle’s engine, this unit ensures reliable cooling for perishable goods on the road, with an optional electric standby system for stationary use.
Key Features:
- High Cooling Capacity: Delivers up to 5100 watts (17350 BTU/hr) at 0°C (32°F) on the road, ideal for fresh and frozen cargo.
- Eco-Friendly Refrigerant: Uses chlorine-zero R404A (1.4kg) or R134a (1.5kg) refrigerants, ensuring environmentally responsible operation.
- Automatic Hot Gas Defrost: Features an automatic hot gas defrost system to maintain performance in cold conditions.
- Powerful Airflow: EVK350 evaporator provides 2200m³/h (1300 cu.ft/min) airflow, ensuring uniform cooling throughout the cargo space.
- Optional Heating System: Includes an optional hot gas or engine water heating program for enhanced temperature control in varying conditions.
Click to Download Product Brochure
Description
System Components
Product Specifications
| Specification | Details |
|---|---|
| Cooling Capacity (R404A) | On Road: 5100 watts (17350 BTU/hr) at 0°C (32°F); 2450 watts (8335 BTU/hr) at -20°C (-4°F) |
| Cooling Capacity (R134a) | On Road: 3810 watts (13000 BTU/hr) at 0°C (32°F); 1758 watts (6000 BTU/hr) at -20°C (-4°F) |
| Cooling Capacity (Standby) | R404A: 4500 watts (15300 BTU/hr) at 2°C (35°F); 2350 watts (8000 BTU/hr) at -18°C (0°F) R134a: 3700 watts (12600 BTU/hr) at 2°C (35°F); 1680 watts (5700 BTU/hr) at -18°C (0°F) |
| Refrigerant | R404A: HFC R404A 1.4kg; R134a: HFC R134a 1.5kg, Chlorine Zero |
| Compressor | Engine Driven; 6 cylinders, 162cc displacement, max speed 3000 RPM |
| Airflow Volume | EVK350 Evaporator: 2200m³/h (1300 cu.ft/min) |
| Electrical Options | DC12V: 38A; DC24V: 19A (Total current consumption on the road) |
| Dimensions (Condenser) | 1537 mm (60.51″) x 200 mm (7.87″) x 680 mm (26.77″) |
| Dimensions (Evaporator) | 1020 mm (40.2″) x 210 mm (8.3″) x 635 mm (25″) |
| Weight | Condenser: 35kg; Evaporator: 26kg |
| System Components | Condenser, Evaporator, Road Compressor (with magnetic clutch), In-Cab Control Box, Wiring Harness, Optional Heating Program |
| Defrost System | Automatic Hot Gas Defrost |
