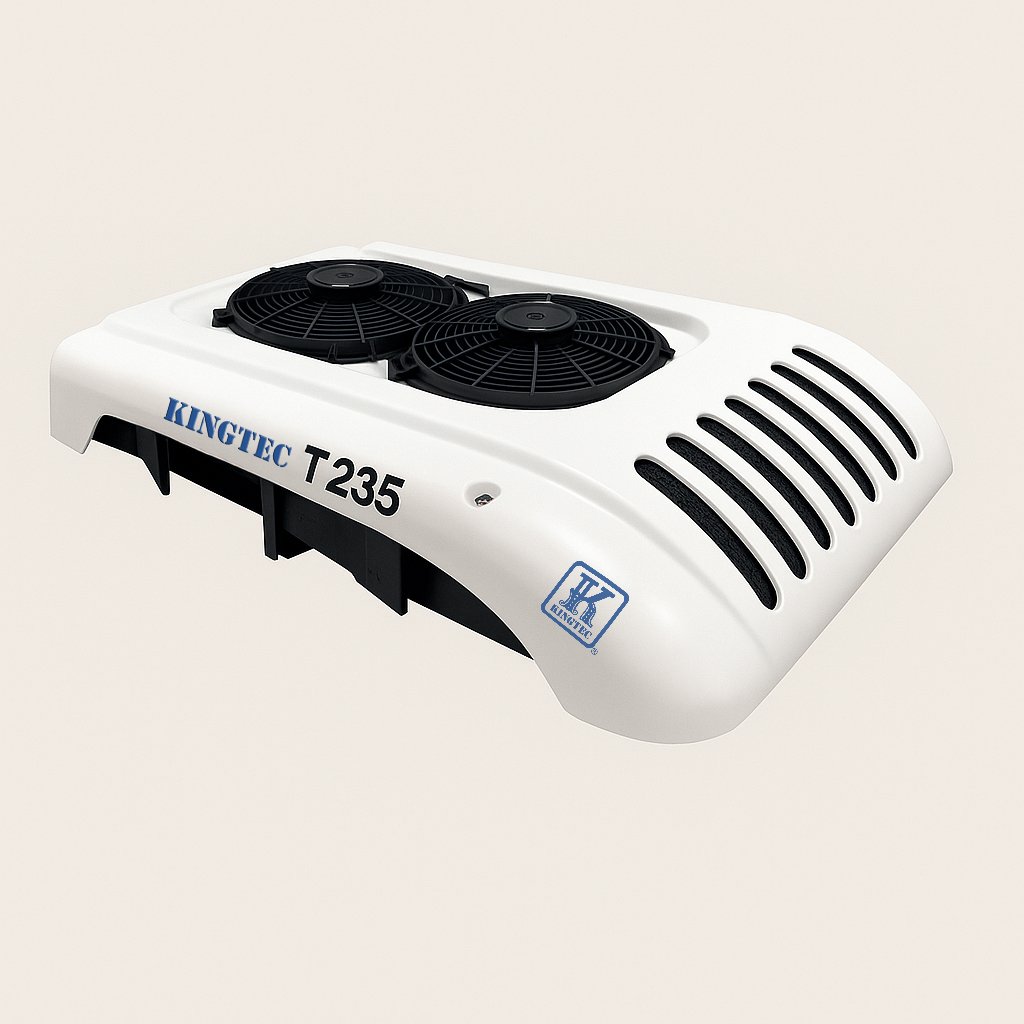

KINGTEC T235EC
The Kingtec T235EC is a reliable, engine-driven refrigeration unit designed for fresh and frozen applications in 6–19m³ mini refrigerator trucks and vans. Engineered for durability and efficiency, it ensures optimal performance under varying ambient conditions.
Key Features:
- Designed for 6–19m³ mini refrigerated trucks & vans
- Engine-driven road compressor with magnetic clutch
- Chlorine-free refrigerant (HFC R134a)
- For both fresh and frozen goods
- Includes condenser, evaporator, control box, and wiring harness
Click to Download Product Brochure
Description
System Components
| Component | Description |
|---|---|

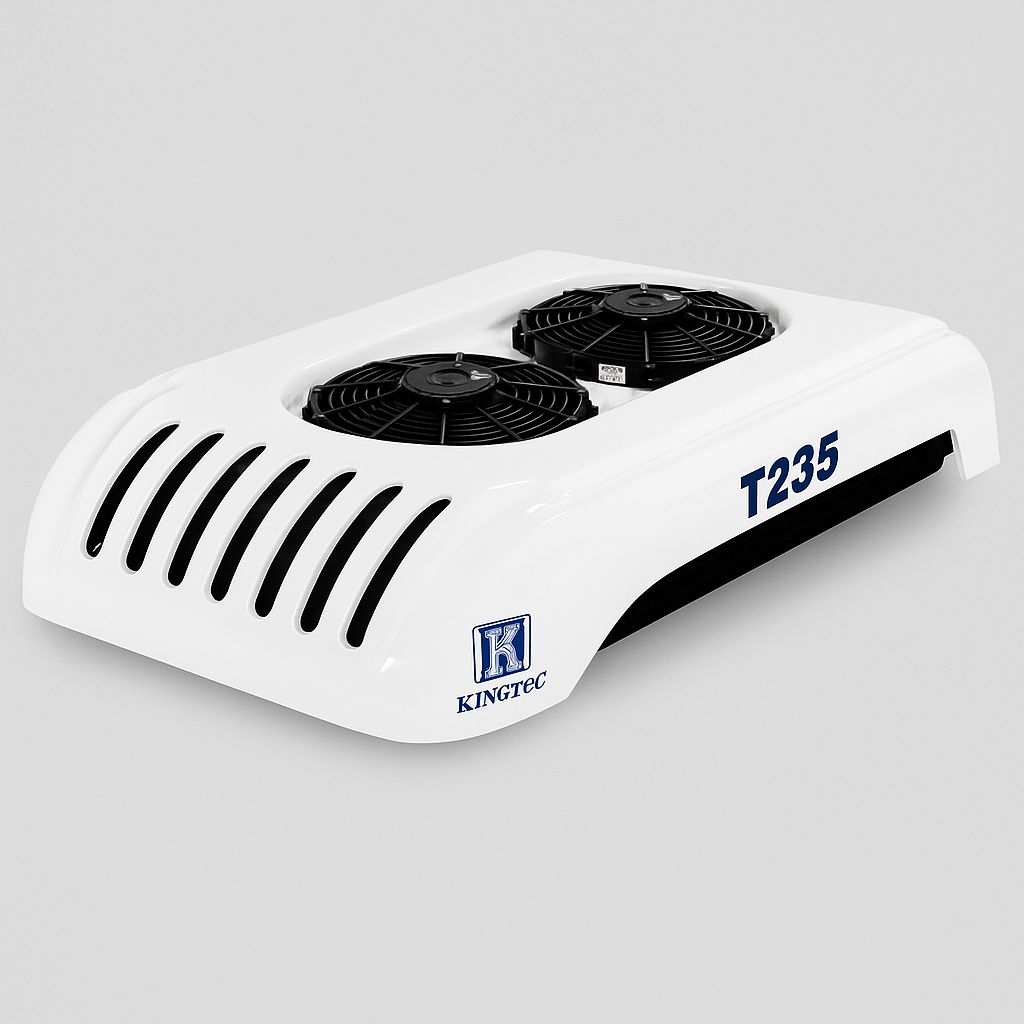

| Condenser Assembly | T235 Model |

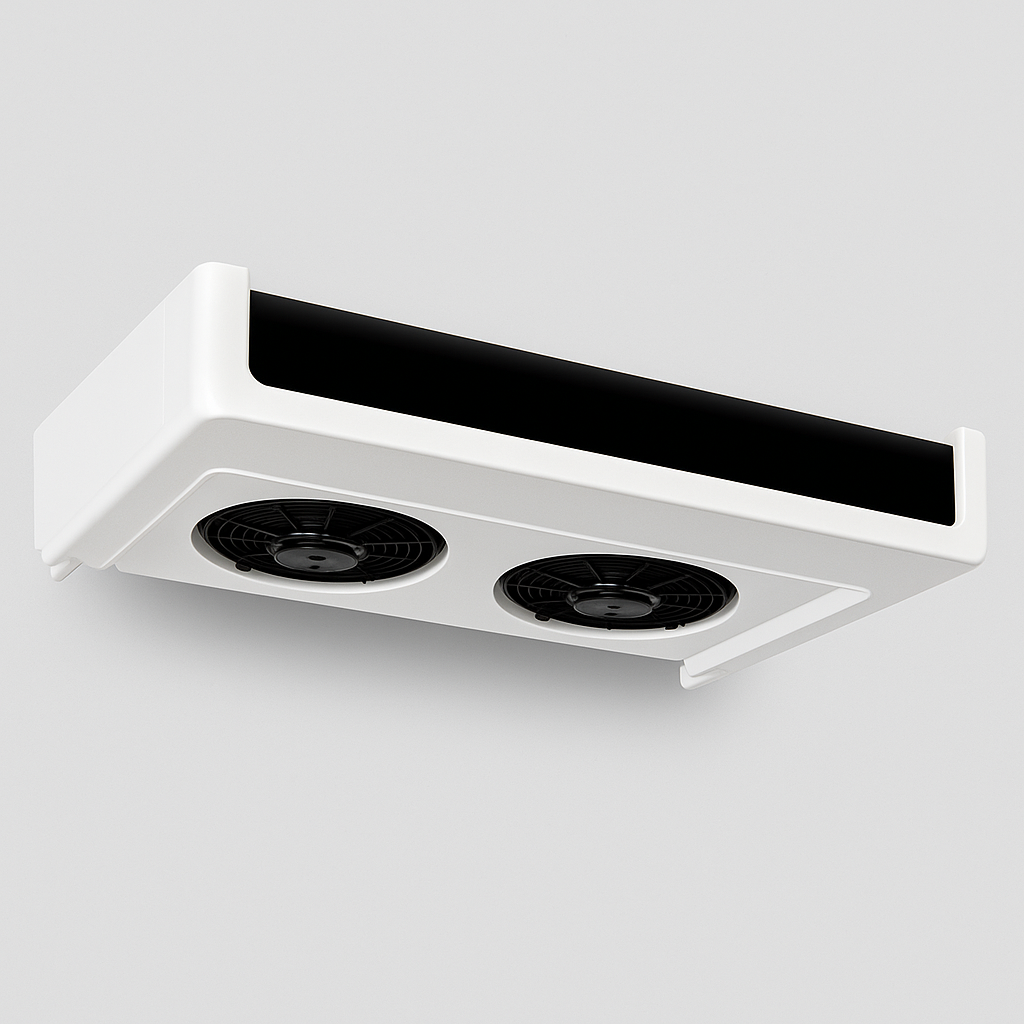

| Evaporator Assembly | EVK300C |
| Road Compressor | Swash Plate Type with Magnetic Clutch |
| Control System | In-cab Control Box with Wiring Harness |
Refrigerant Specifications
| Specification | Details |
|---|---|
| Type | HFC R134a (Chlorine-free) |
| Charge | 1.65 kg |
Road Compressor Details
| Parameter | Value |
|---|---|
| Max Recommended Speed | 3000 RPM |
| Displacement | 162 cc |
| Number of Cylinders | 6 |
| Feature | Includes oil return separator |
Airflow Volume
| Component | Airflow Volume |
|---|---|
| EVK300C | 1380 m³/h (810 cu ft/min) |
Electrical Specifications
| Parameter | 12V | 24V |
|---|---|---|
| Voltage | DC 12V | DC 24V |
| Current Consumption | 28 A | 15.5 A |
Cooling Performance (at 2400 Compressor RPM)
| Temperature | Capacity (Watts) | Capacity (BTU/hr) |
|---|---|---|
| 0°C (32°F) | 2990 W | 10,200 BTU/hr |
| -20°C (-4°F) | 1300 W | 4,440 BTU/hr |
| 2°C (35°F) (US Std) | 2850 W | 9,560 BTU/hr |
| -18°C (0°F) (US Std) | 1200 W | 4,100 BTU/hr |
Dimensions
| Component | Dimensions (L × W × H) |
|---|---|
| Condenser Assembly | 1010mm × 680mm × 180mm (40″ × 26.7″ × 7″) |
| Evaporator Assembly | 1004mm × 546mm × 185mm (39.5″ × 21.5″ × 7.3″) |
| LAE Control Panel | 77mm × 77mm × 35mm |
Weight
| Component | Weight |
|---|---|
| Condenser Assembly | 25 kg |
| Evaporator Assembly | 22 kg |
