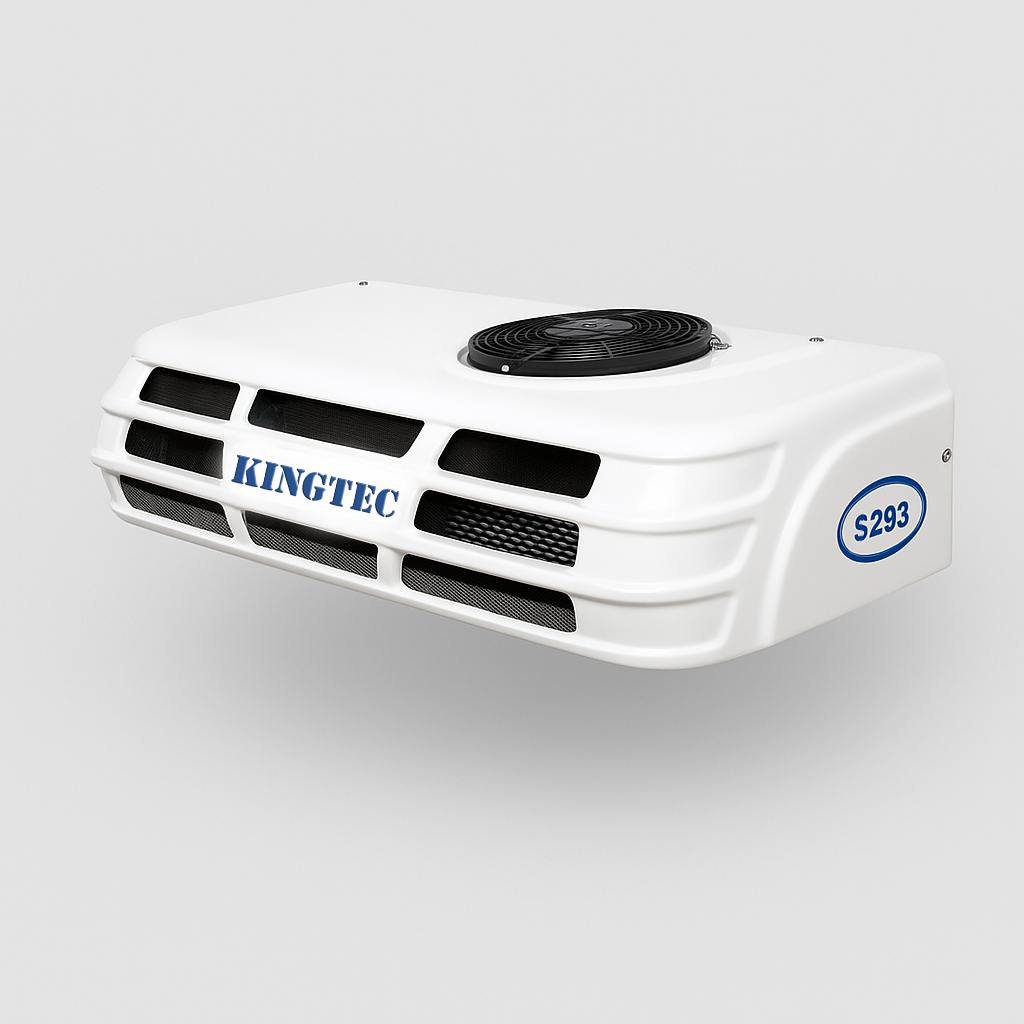

KINGTEC S293
The Kingtec S293 series is a compact and efficient refrigeration solution designed for fresh and frozen applications in small to mid-sized (6–19m³) refrigerated trucks and vans. Powered by the vehicle’s engine, the system offers reliable cooling performance with integrated condenser and evaporator assemblies.
Key Features:
-
Dual Refrigerant Compatibility: Supports both R134a and R404A refrigerants.
-
Engine-Driven Road Compressor: Swash plate design with oil return separator and 3000 RPM max speed.
-

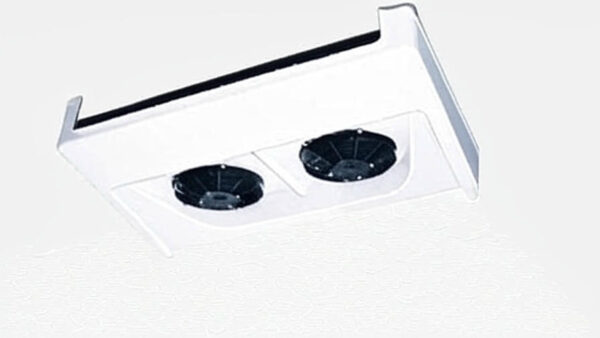

High Airflow Volume: EVK300C evaporator provides 1380 m³/h airflow (810 cu ft/min).
-
Efficient Defrost System: Automatic hot gas defrost for reliable operation in freezing conditions.
-
Flexible Electrical Options: Available in both DC12V and DC24V power systems.
Click to Download Product Brochure
Description
System Components
Product Specifications:
| Specification | Details |
|---|---|
| Refrigerant (Chlorine-Free) | R134a: 1.65 kg / R404A: 1.5 kg |
| Road Compressor Type | Swash plate (6 cylinders) |
| Displacement | R134a: 162cc / R404A: 147cc |
| Max Recommended Speed | 3000 RPM |
| Evaporator Airflow | 1380 m³/h (810 cu ft/min) |
| Defrost System | Automatic hot gas defrost |
| Electrical Options | DC12V (28A) / DC24V (15.5A) |
| Weight – Condenser Assembly | 25 kg |
| Weight – Evaporator Assembly | 22 kg |
| Cooling Capacity (R134a) | 0°C: 2990W / -20°C: 1300W |
| Cooling Capacity (R404A) | 0°C: 3320W / -20°C: 1880W |
