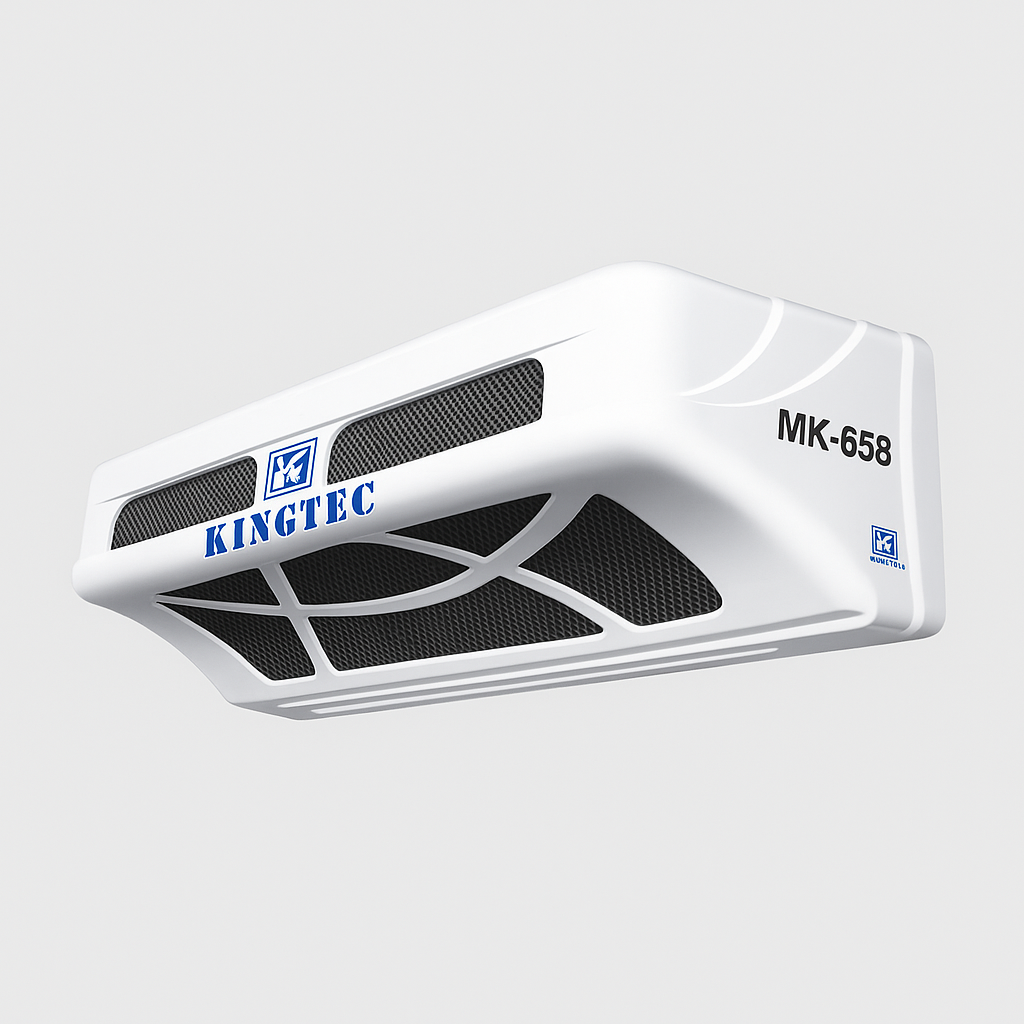

Kingtec MK-658
The Kingtec MK658 series is designed for fresh and frozen applications on 6-60m³ refrigeration trucks, powered by the vehicle’s engine. It features a condenser and evaporator assembly with a swash plate road compressor for efficient cooling.
Key Features:
- High-capacity cooling for 6-60m³ refrigeration trucks
- Integrated condenser and evaporator assembly for efficient performance
- Swash plate road compressor with magnetic clutch for reliability
- High airflow volume: 2750 m³/h (1618 cu ft/min) for optimal cooling
- Optional heating functions (Hot Gas or Engine Water Heating System) for versatility
Click to Download Product Brochure
Description
System Components
Product Specifications
| Category | Details |
|---|---|
| Refrigerant | R404A (HFC R404A – 2.4 kg) |
| Cooling Capacity @ 30°C (R404A) | 0°C: 6500 W / 22165 BTU/h -20°C: 3500 W / 11935 BTU/h |
| Cooling Capacity @ 38°C (R404A) | 2°C: 6200 W / 21140 BTU/h -18°C: 3350 W / 11425 BTU/h |
| Road Compressor | Swash plate, displacement: 215cc, max 3000 rpm, with oil return separator |
| Airflow Volume | 2750 m³/h (1618 cu ft/min) |
| Electrical Options | DC12V (38A) / DC24V (19A) |
| Optional Heating | Hot Gas / Engine Water Heating System |
| Dimensions (Condenser) | 1460×510×422 mm (58″×20″×17″) |
| Dimensions (Evaporator) | 1670×620×233 mm (66″×24.4″×9.2″) |
| Weights | Condenser: 70 kg Evaporator: 45 kg |
