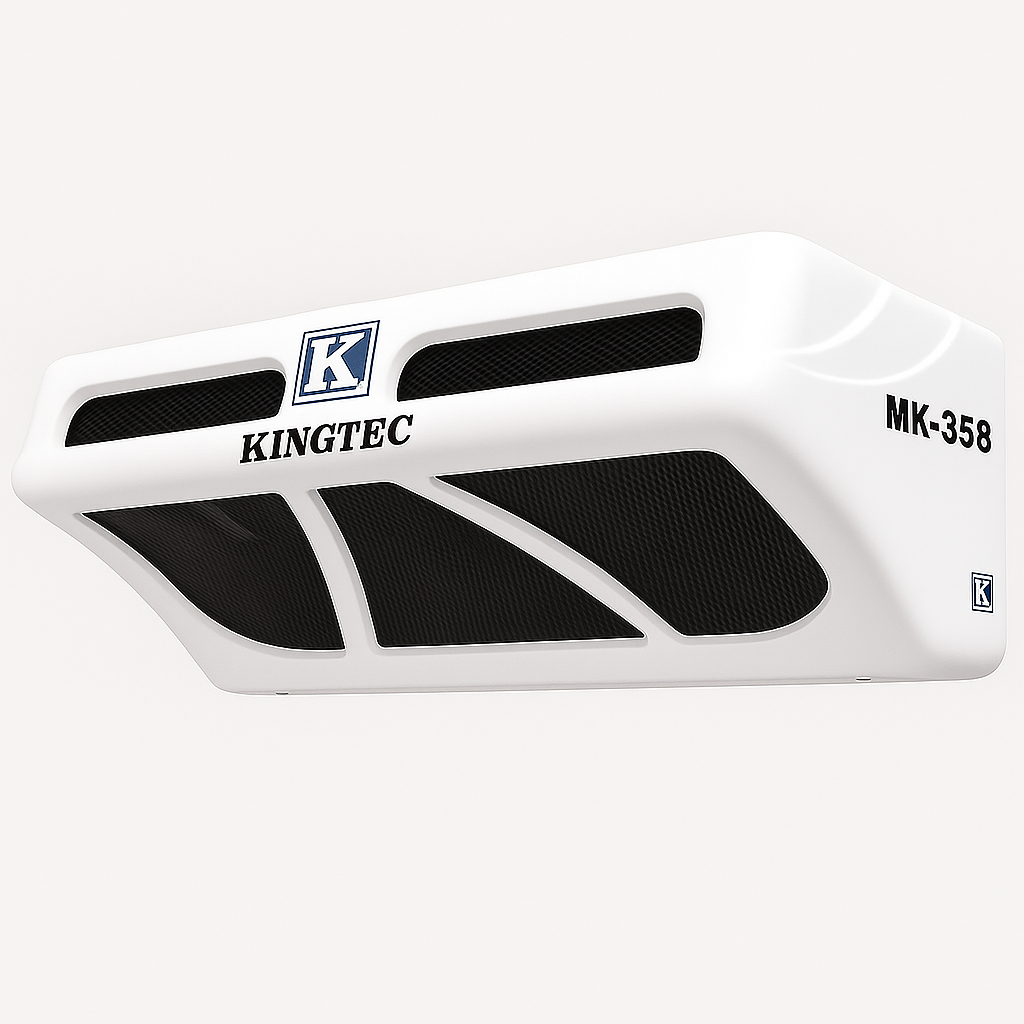

Kingtec MK-358
The Kingtec MK-358 is a compact and efficient transport refrigeration unit designed for mini refrigerator trucks ranging from 6 to 19m³. Built with a dual power system — engine-driven and electric standby — it ensures consistent performance for both fresh and frozen cargo across varying climate conditions.
Key Features:
-
Dual refrigerant options: HFC R404A (1.3kg) or HFC R134a (1.4kg)
-
Lightweight and compact condenser and evaporator assemblies
-
High airflow with EVK350C evaporator (1600 m³/h)
-
Optional heating via Hot Gas or Engine Water Heating
-
Available in DC12V or DC24V configurations
Click to Download Product Brochure
Description
System Components
Product Specifications:
| Category | Specification |
|---|---|
| Cooling Capacity (ATP Standard) | R404A: 4420 W (0°C), 2380 W (-20°C) R134a: 3810 W (0°C), 1758 W (-20°C) |
| Cooling Capacity (US Standard) | R404A: 4150 W (2°C), 2200 W (-18°C) R134a: 3700 W (2°C), 1680 W (-18°C) |
| Refrigerant Options | HFC R404A (1.3 kg) / HFC R134a (1.4 kg) |
| Road Compressor | Swash Plate, 6-cylinder, Select Tm16 (162cc) |
| Max Compressor Speed | 3000 RPM |

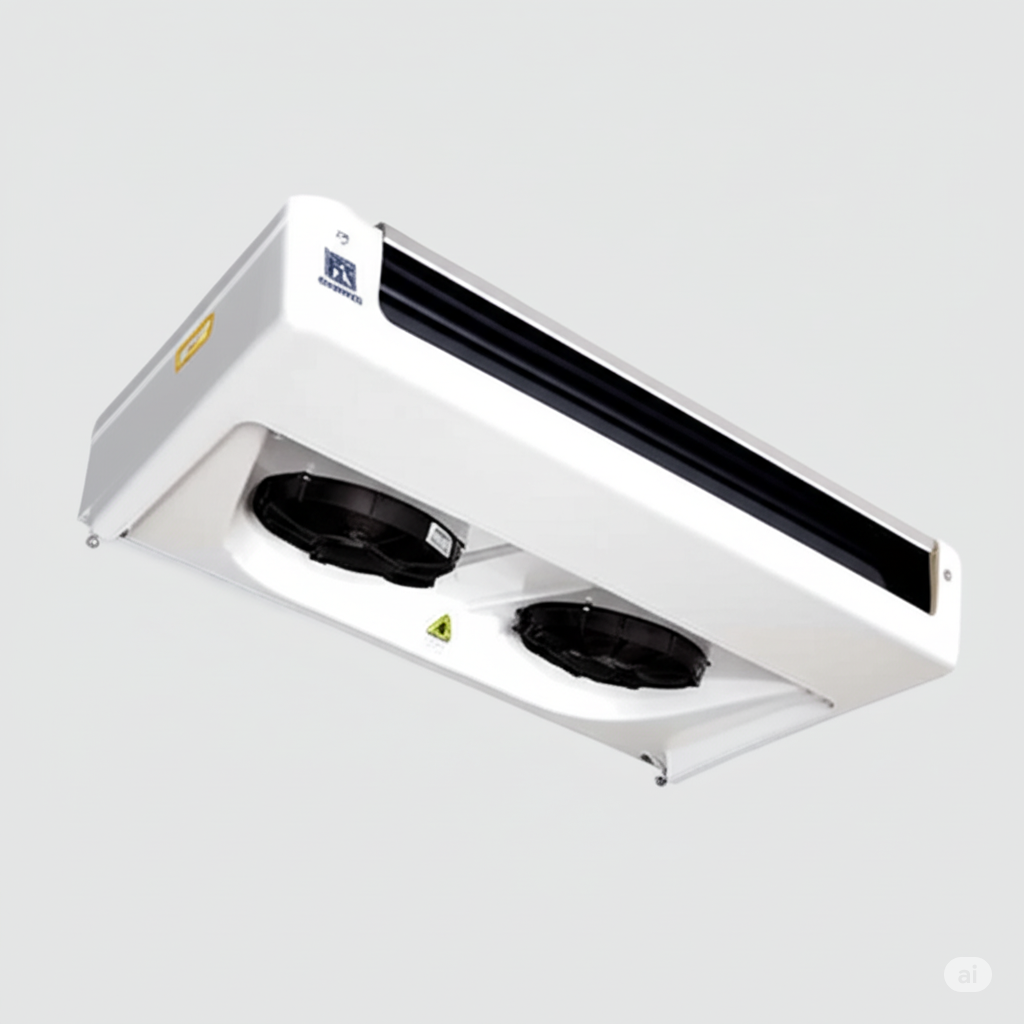

| Evaporator | EVK350C (Airflow: 1600 m³/h or 940 cu ft/min) |
| Defrost System | Automatic Hot Gas Defrost |
| Voltage Options | DC12V (38A) or DC24V (19A) |
| Weights | Condenser: 35 kg, Evaporator: 26 kg |
| Dimensions (Condenser) | 1070 x 520 x 355 mm (42.1″ x 20.5″ x 14″) |
| Dimensions (Evaporator) | 1020 x 630 x 180 mm (40.2″ x 24.8″ x 7″) |
| Control Panel Size | 77 x 77 x 35 mm (3.03″ x 3.03″ x 1.37″) |
