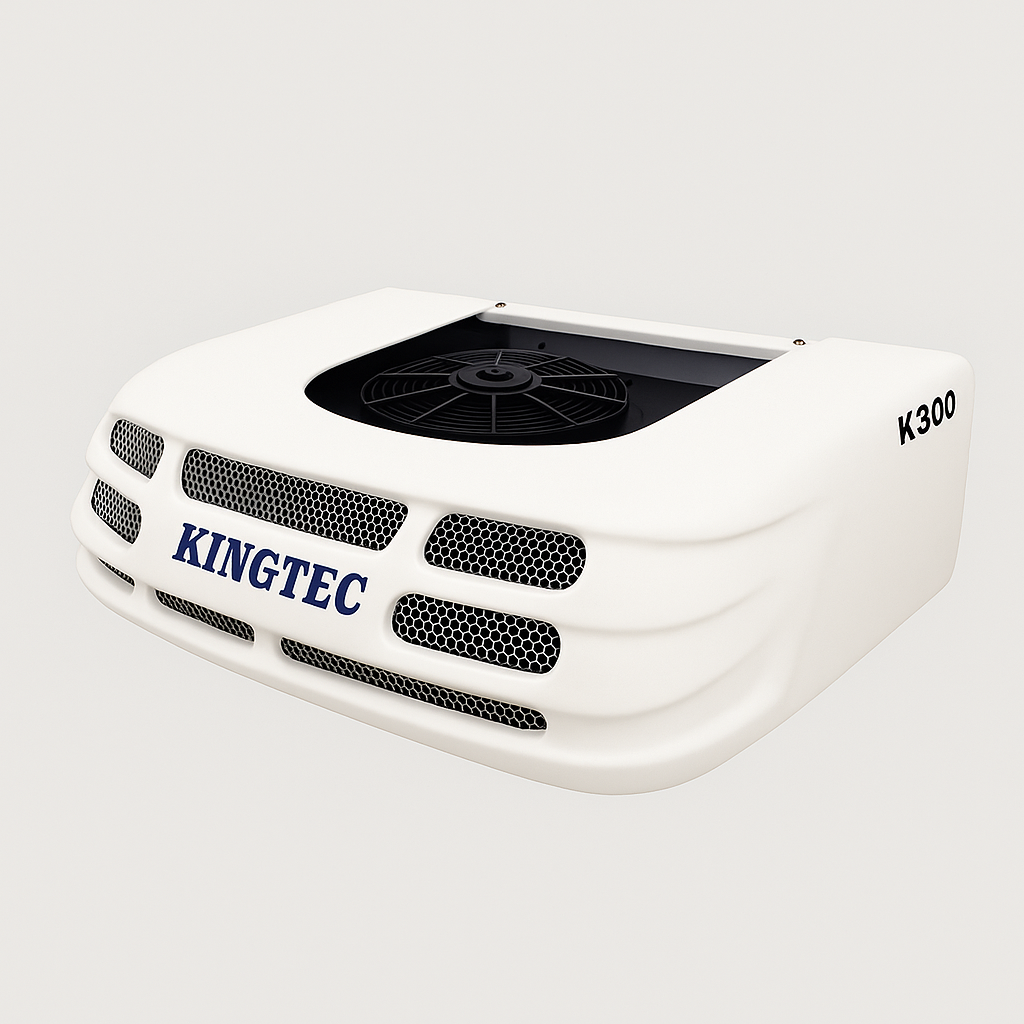

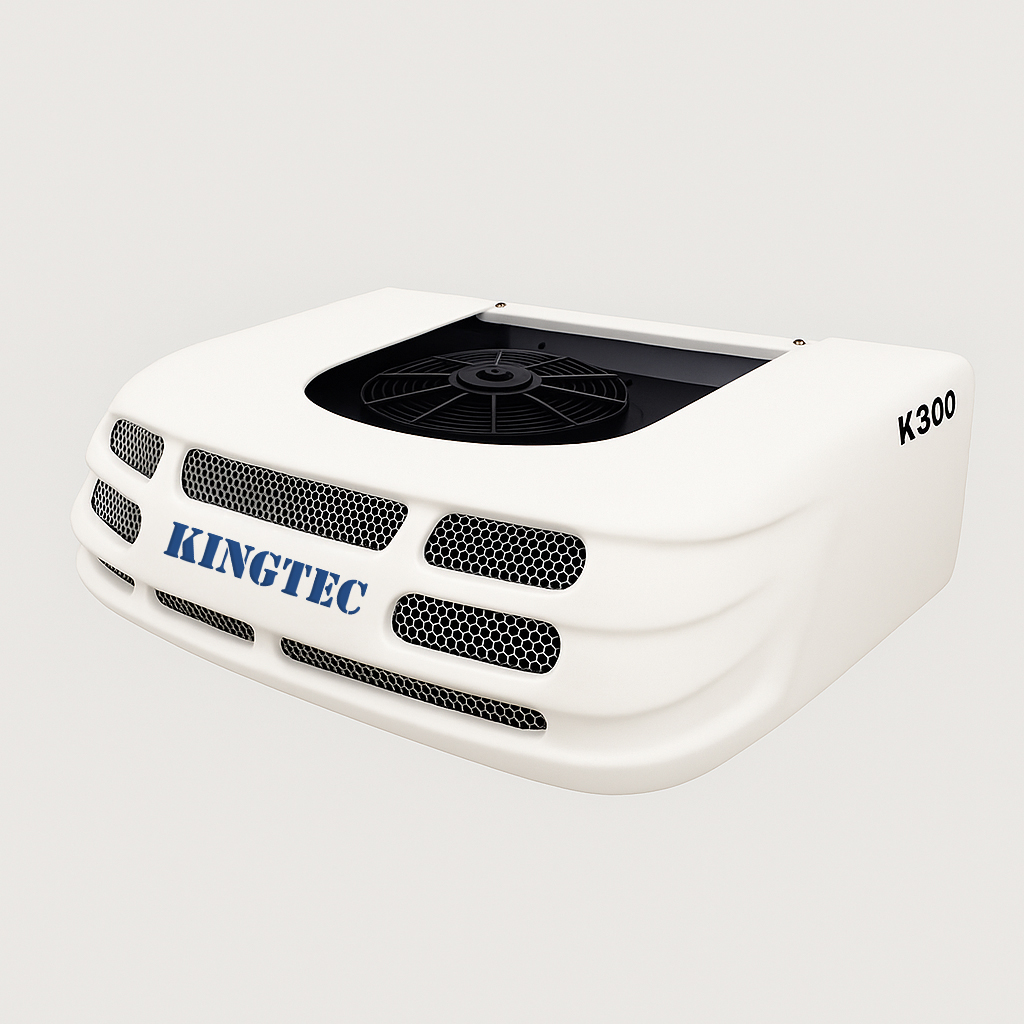

Kingtec K300
The Kingtec K300 series is designed for fresh and frozen applications in 5-10m³ mini refrigerator trucks and vans. It features a road compressor powered by the vehicle’s engine and an electric standby motor, ensuring reliable cooling for perishable goods both on the road and during stationary use.
Key Features:
- Dual-Compressor System: Road compressor powered by the vehicle’s engine and an electric standby motor for versatile cooling on the road and at rest.
- High Cooling Capacity: Achieves up to 2030 watts (6930 BTU/hr) at 0°C (32°F) on the road, ideal for maintaining fresh and frozen goods.
- Eco-Friendly Refrigerant: Uses chlorine-zero R134a refrigerant (1.2kg), ensuring environmentally conscious operation.
- Compact Design: Condenser dimensions of 870 x 230 x 505 mm and evaporator at 805 x 142 x 344 mm, making it easy to install in tight spaces.
- Efficient Airflow: 848L evaporator delivers 1300m³/h (410 cu.ft/min) airflow, ensuring consistent temperature distribution.
Click to Download Product Brochure
Description
System Components
Product Specifications
| Specification | Details |
|---|---|
| Cooling Capacity (On Road) | 2030 watts (6930 BTU/hr) at 0°C (32°F); 980 watts (3350 BTU/hr) at -20°C (-4°F) |
| Cooling Capacity (Standby) | 1550 watts (5430 BTU/hr) at 2°C (35°F); 930 watts (3175 BTU/hr) at -18°C (0°F) |
| Refrigerant | R134a (HFC R134a); 1.2kg, Chlorine Zero |
| Compressor | Engine Driven; 6 cylinders, 162cc displacement, max speed 3600 RPM |
| Airflow Volume | 848L Evaporator: 1300m³/h (410 cu.ft/min) |
| Electrical Options | DC12V: 24A; DC24V: 12A (Total current consumption on the road) |
| Dimensions (Condenser) | 870 mm (34.3″) x 230 mm (9.2″) x 505 mm (19.8″) |
| Dimensions (Evaporator) | 805 mm (31.7″) x 142 mm (5.6″) x 344 mm (13.5″) |
| Weight | Condenser: 25kg; Evaporator: 8kg |
| System Components | Condenser, Evaporator, Swash Plate Road Compressor, In-Cab Control Box, Wiring Harness |
