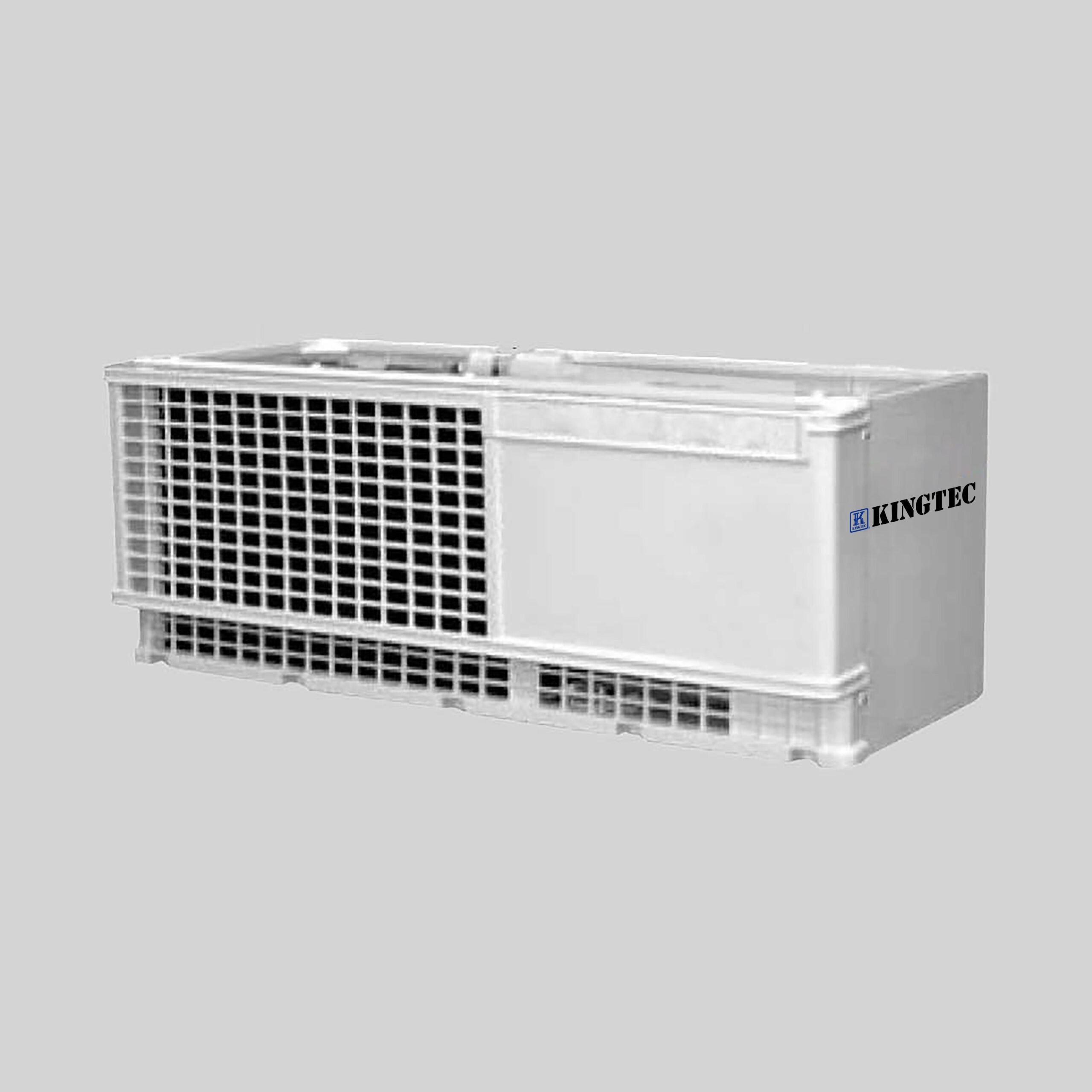

The Kingtec Eutectic System is a high-performance deep-freeze refrigeration solution engineered for trucks requiring consistent ultra-low temperatures down to –33°C. Using eutectic plates combined with a powerful DC scroll compressor, this system delivers reliable, fuel-efficient cooling for ice cream, frozen foods, and long-distance distribution.

Key Features

• Achieves –33°C for deep-freeze transport

• Uses 4HP horizontal low-temperature DC scroll compressor for stable cooling

• Eutectic plates store cooling energy, enabling zero-emission operation while the vehicle is moving

• Durable copper pipe with aluminum extruded sections for long service life

• Designed for trucks with L2900 × W1700 × H1700 mm cargo dimensions

• Equipped with AC fans for strong airflow and temperature uniformity

• Highly energy-efficient for fleets with fixed delivery routes

Performance Highlights

• Freeze Capacity: 2,350 kcal × 5 plates = 11,750 kcal total

• Ensures stable deep-freeze temperatures during stops, loading, or engine-off intervals

• Ideal for routes requiring long holdover times without active mechanical cooling

Dimensions & Weights

(Based on truck-body and plate specifications from page 2)

• Eutectic Unit Dimensions: Sized to fit front-mount position

• Plate Weight: 58 kg × 5 plates = 348 kg

• Compressor: 4HP low-temperature model

Applications / Use Cases

• Frozen food delivery (ice cream, seafood, meat)

• Long-distance distribution requiring temperature stability

• Vehicles without continuous engine-powered cooling

• Fixed delivery routes with repetitive freeze-charge cycles

• Urban zero-emission zones (cooling stored inside plates)

Benefits

• Zero-emission cooling during transit—ideal for sustainability-focused fleets

• No engine load while driving, saving fuel and reducing maintenance

• Extremely stable temperatures even with frequent door openings

• Long holdover time thanks to high-capacity eutectic plates

• Reliable performance in harsh GCC climates

Download Brochure

Get full engineering data, installation details, and diagrams.
👉 Download the Kingtec Eutectic System Brochure (PDF)
