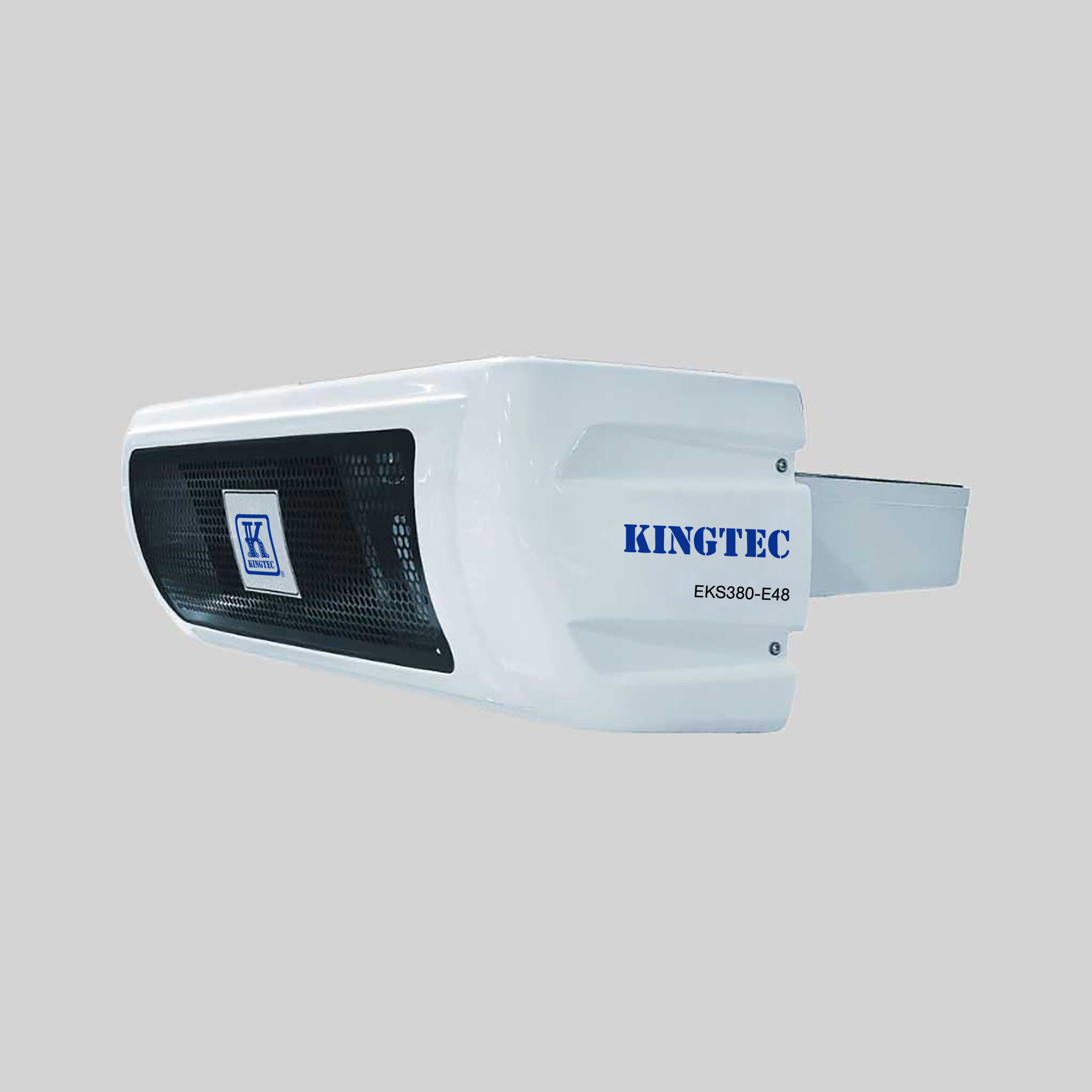

The Kingtec EKS380-E48 is a fully electric, all-in-one refrigeration unit engineered for 15–25 m³ refrigerated trucks. Powered by a dedicated DC48V lithium iron phosphate battery, it delivers fast cooling, high efficiency, and zero impact on the vehicle’s driving range. Designed for modern cold-chain fleets, it offers low energy consumption, lightweight construction, and reliable performance in demanding conditions.

Key Features

• All-electric operation with a dedicated DC48V battery—no load on vehicle engine or chassis battery

• Integrated lightweight aluminum structure for faster installation and reduced vehicle weight

• High-efficiency DC48V scroll compressor ensuring rapid cooling with low energy use

• Hot-gas defrost system for uninterrupted cooling cycles

• Intelligent BMS-controlled LiFePO4 battery offering long life, high safety, and wide temperature tolerance

• Zero-emission, low-noise operation ideal for urban and indoor deliveries

• Maintenance-free power system designed for a 10-year lifespan

Performance Highlights

Cooling Capacity (R134a)

At 30°C (86°F) ambient — ATP Standard

• 0°C (32°F): 3445 W / 11,715 BTU/hr

At 38°C (100°F) ambient — National Standard

• 2°C (35°F): 3205 W / 10,897 BTU/hr

Energy Efficiency

• Power consumption: 2.88 kW per hour

• Operating current: 60 A

The EKS380-E48 is ideal for:

• Urban last-mile refrigerated deliveries

• Food, dairy, meat, and seafood logistics

• Pharmaceutical and medical cold-chain transport

• Zero-emission delivery zones

• Electric or hybrid vehicle fleets

• Any 15–25 m³ refrigerated box truck

Benefits

• No loss of vehicle mileage — independent battery system

• Eco-friendly & quiet — perfect for night-time or residential deliveries

• Lower installation cost thanks to integrated design

• High durability using LiFePO4 batteries with long cycle life

• Minimal maintenance — intelligent BMS ensures safe operation

• Lighter weight improves vehicle payload capacity

Download Brochure

Get full technical details, drawings, and installation specifications.
👉 Download the EKS380-E48 Brochure (PDF)
